Pitch Gauges

The pitch gauge is a tool for easily measuring the pitch (width/spacing) of general screws, bolts, nuts, etc., by applying it to a screw thread. It can be used for screws of various shapes to easily measure the pitch by applying it to a screw thread or putting screws through the gauge, and the number of pitches indicated on the leaf makes it easy to take the measurement. Some of them have an inch-millimeter conversion table. Please select a product that is suitable for the thread standards (millimeter, Whitworth, unified, etc.) you are using. Types of pitch gauges include pitch gauges for general screws, bolts, and taps, as well as gear tooth gauges for gears and racks. Some of them are used for specific purposes such as a root face inspection measurement gauge used for gas cutting and groove processing in the manufacturing process inspection, and a profiling gauge for molding curved parts of wood and metal. Since the pressure angle may differ depending on the product, it is necessary to check before selecting.

Show More Detail Show More Detail

Brand	NIIGATA SEIKI (SK) (1) SHINWASOKUTEI (4) TRUSCO NAKAYAMA (2)
CAD	2D 3D
Days to Ship	All 5 Day(s) or Less 6 Day(s) or Less 8 Day(s) or Less

7 items

Sort By

: 30; 45; 60

You can add up to 6 items per a category to the compare list. Compare

Acme Screw Pitch Gauge【12-16 Pieces Per Package】

TRUSCO NAKAYAMA

[Features]
· Easily and accurately measures the pitch of Acme type trapezoidal screw.
· Thickness is 0.8 mm.
[Applications]
· Pitch measurement.

Number of Sheets(sheet)	Product Type	Standard
12 ～ 16	-	-

From: ₹ 963.75
Days to Ship: 5 Day(s) or more

5 Day(s) or more

You can add up to 6 items per a category to the compare list. Compare

Pitch gauge【1-28 Pieces Per Package】

TRUSCO NAKAYAMA

[Features]
· The pitch of general threads can be measured easily and accurately.
[Applications]
· For thread pitch.

Number of Sheets(sheet)	Product Type	Standard
17 ～ 28	-	-

From: ₹ 127.15
Days to Ship: 5 Day(s) or more

5 Day(s) or more

You can add up to 6 items per a category to the compare list. Compare

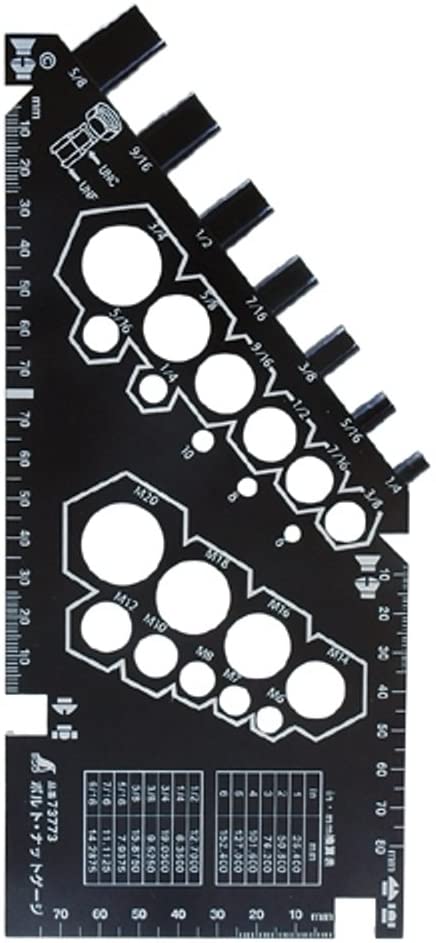

Bolt, Nut Gauge

SHINWASOKUTEI

The size of bolts and nuts can be easily measured just by touching or inserting the product. Can measure the length of screws with various shapes. Imperial/metric conversion table included.

Number of Sheets(sheet)	Product Type	Standard
1	-	-

From: ₹ 614.00
Days to Ship: 5 Day(s) or more

5 Day(s) or more

You can add up to 6 items per a category to the compare list. Compare

Pitch gauge M28/W26

NIIGATA SEIKI (SK)

Pitch gauge that can easily check screw pitch just by threading it onto male threads.
[Features]
· Pitch number is written on the leaf.
[Applications]
· Used for measuring pitches of general screws.

Number of Sheets(sheet)	Product Type	Standard
26 ～ 28	mm / Inch	Pitch Size: 0.25 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 1 1.1 1.2 1.25 1.3 1.4 1.5 1.6 1.7 1.75 1.8 1.9 2 2.5 ～ Pitch Size: 4 41/2 5 6 7 8 9 10 11 12 13 14 16 18 19 20 22 24 25 26 28 30 32 40 48 60

From: ₹ 3,100.82
Days to Ship: 5 Day(s) or more

5 Day(s) or more

You can add up to 6 items per a category to the compare list. Compare

Pitch gauge

SHINWASOKUTEI

Pitch gauge for general screw pitch measurement.
[Features]
· Pitch measurement can be performed just by touching the thread.

Number of Sheets(sheet)	Product Type	Standard
26 ～ 28	mm / Inch	-

From: ₹ 1,083.38
Days to Ship: 6 Day(s) or more

6 Day(s) or more

You can add up to 6 items per a category to the compare list. Compare

Route Gap Measurement Gauge 9 Set (4-12 mm)

SHINWASOKUTEI

Used in manufacturing process inspections such as the inspection measurement of the root face in gas cutting / beveling edge preparation, etc.

Number of Sheets(sheet)	Product Type	Standard
9	-	-

From: ₹ 8,884.04
Days to Ship: 8 Day(s) or more

8 Day(s) or more

You can add up to 6 items per a category to the compare list. Compare

Molding Gauge

SHINWASOKUTEI

A molding gauge used for molding carpets, rugs, wood, and metal.
[Features]
· Uses a rust-free stainless steel needle.
[Applications]
· Easily moldable in any shape

Number of Sheets(sheet)	Product Type	Standard
1	-	-

From: ₹ 1,230.89
Days to Ship: 5 Day(s) or more

5 Day(s) or more


Brand
Product Series
From
Days to Ship
Number of Sheets(sheet)
Product Type
Standard

	You can add up to 6 items per a category to the compare list.Compare	You can add up to 6 items per a category to the compare list.Compare	You can add up to 6 items per a category to the compare list.Compare	You can add up to 6 items per a category to the compare list.Compare	You can add up to 6 items per a category to the compare list.Compare	You can add up to 6 items per a category to the compare list.Compare	You can add up to 6 items per a category to the compare list.Compare
Brand	TRUSCO NAKAYAMA	TRUSCO NAKAYAMA	SHINWASOKUTEI	NIIGATA SEIKI (SK)	SHINWASOKUTEI	SHINWASOKUTEI	SHINWASOKUTEI
Product Series	Acme Screw Pitch Gauge【12-16 Pieces Per Package】	Pitch gauge【1-28 Pieces Per Package】	Bolt, Nut Gauge	Pitch gauge M28/W26	Pitch gauge	Route Gap Measurement Gauge 9 Set (4-12 mm)	Molding Gauge
From	₹ 15,419.98	₹ 3,558.93	₹ 614.00	₹ 3,100.82	₹ 1,083.38	₹ 8,884.04	₹ 1,230.89
Days to Ship	5 Day(s) or more	5 Day(s) or more	5 Day(s) or more	5 Day(s) or more	6 Day(s) or more	8 Day(s) or more	5 Day(s) or more
Number of Sheets(sheet)	12 ～ 16	17 ～ 28	1	26 ～ 28	26 ～ 28	9	1
Product Type	-	-	-	mm / Inch	mm / Inch	-	-
Standard	-	-	-	Pitch Size: 0.25 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 1 1.1 1.2 1.25 1.3 1.4 1.5 1.6 1.7 1.75 1.8 1.9 2 2.5 ～ Pitch Size: 4 41/2 5 6 7 8 9 10 11 12 13 14 16 18 19 20 22 24 25 26 28 30 32 40 48 60	-	-	-
