[Short Delivery Size]Full-Ball Type LM Guide, Radial Type, SR Type
![[Short Delivery Size]Full-Ball Type LM Guide, Radial Type, SR Type](http://in.misumi-ec.com/linked/material/mech/THK1/PHOTO/221302281696_001.jpg?$product_main$)
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Order Qty :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
(i)
Caution
- The G dimension (distance from the rail flange to the mounting hole) is processed so that it is even on the left and right.
Please note that the G dimension may differ from the values listed in the catalog and CAD depending on the overall length of the product. - When ordering multiple shaft types, input multiples of the number of required shafts as the order quantity.
(Example) If the required number of axes is 2 (-II), then the number of orders will be"2 pcs., 4 pcs., 6 pcs.: "
If the required number of axes is 3 (-III), then the number of orders will be"3 pcs., 6 pcs., 9 pcs.: " - [If the Desired Specifications Cannot Be Specified]
MISUMI has a product page that allows you to specify a wide range of items such as length, accuracy grade, pressure, etc.
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Similar Products
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Product Detail
Product Description
[Features]
·A compact type with a low cross-sectional height, ideal for horizontal guides due to the ball contact structure that is resistant to loads in the radial direction
·Since it is an automatic adjustment type that can absorb the parallelism of the 2 axes and the accuracy error of the level reasonably, high precision and smooth movement can be obtained
·The return part of each ball row is designed so that balls circulate smoothly by the guide part of the end plate, so a rolling motion with a small sound can be obtained
·Even with respect to preload and eccentric load, the differential slip of the ball is small, it has excellent abrasion resistance, and it is possible to maintain accuracy for a long period of time
·LM blocks, LM rails, and balls can be handled with stainless steel
·Even if the LM block is pulled out from the LM rail, the ball is held by the holding plate and will not fall off
Drawing

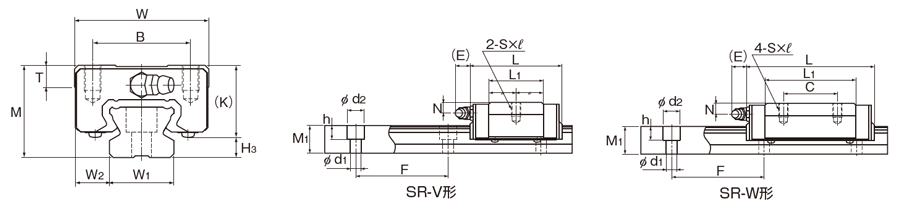

![[Short Delivery Size]Full-ball type LM guide, radial type, SR type, drawing 1](http://in.misumi-ec.com/linked/vitem/mech/THK1/221302281696/img/drw_01.gif)
SR-W type, SR-WM type, SR-V type, SR-VM type

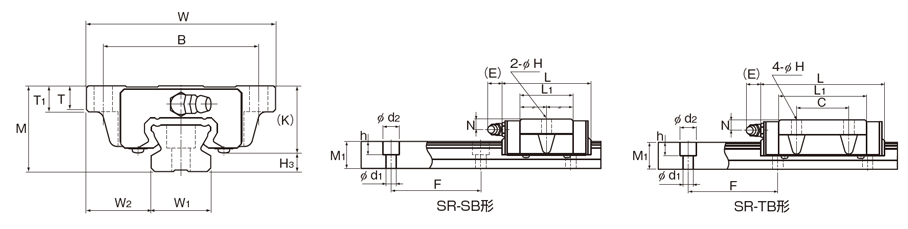

![[Short Delivery Size]Full-ball type LM guide, radial type, SR type, drawing 2](http://in.misumi-ec.com/linked/vitem/mech/THK1/221302281696/img/drw_02.gif)
SR-TB type, SR-TBM type, SR-SB type, SR-SBM type
Standard Table

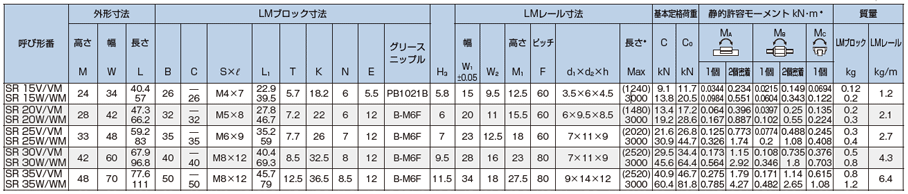

![[Short Delivery Size]Full-ball type LM guide, radial type, SR type, standard table](http://in.misumi-ec.com/linked/vitem/mech/THK1/221302281696/img/oth_03.gif)
SR-W type, SR-WM type, SR-V type, SR-VM type

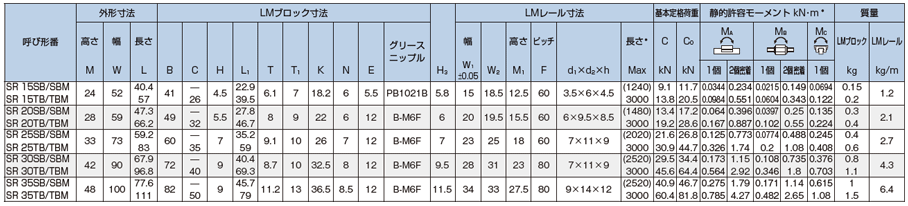

![[Short Delivery Size]Full-ball type LM guide, radial type, SR type, standard table 2](http://in.misumi-ec.com/linked/vitem/mech/THK1/221302281696/img/oth_04.gif)
SR-TB type, SR-TBM type, SR-SB type, SR-SBM type
*1)
Length *:
- Length Max indicates the standard maximum length of the LM rail.
Allowable static moment *:
- 1 pc.: Static permissible moment in 1 LM block
- 2 pcs. in close contact: Static permissible moment when 2 LM blocks are in close contact
Block overall length dimension L:
- The block overall length L shown in the dimension table is the dimension when the dust-proof symbol is UU or SS. If other dust-proof parts or lubrication devices are installed, the overall block length L will increase.
- The symbol M in the nominal model number indicates that the material of the LM block, LM rail and ball is stainless steel.
Stainless steel products have excellent corrosion resistance and environmental resistance.
*2) 2 types of rails with different mounting hole dimensions are available for SR15 type and 25 type.
| Nominal Model Number | Standard Rail | Semi-standard rail |
|---|---|---|
| SR15 | For M3 (No symbol) | For M4 (Symbol Y) |
| SR25 | For M6 (Symbol Y) | For M5 (No symbol) |
Please be careful about the mounting hole dimensions of the LM rail when replacing it with the SSR type.
*3) The basic rated load in the dimension table is the value for the load in the radial direction.
| Part Number |
|---|
| SR30SB[1,2,3,4,5,6,7,8,9]M+[110-2440/1]LM |
| SR30TB[1,2,3,4,5,6,7,8,9]M+[110-2440/1]LM |
| SR30V[1,2,3,4,5,6,7,8,9]M+[110-2440/1]LM |
| SR30W[1,2,3,4,5,6,7,8,9]M+[110-2440/1]LM |
| SR35SB[1,2,3,4,5,6,7,8,9]M+[124-2440/1]LM |
| SR35TB[1,2,3,4,5,6,7,8,9]M+[124-2440/1]LM |
| SR35V[1,2,3,4,5,6,7,8,9]M+[124-2440/1]LM |
| SR35W[1,2,3,4,5,6,7,8,9]M+[124-2440/1]LM |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | Block Type (mm) | Rail Width W1 | Nominal Part Number | Material | Basic Load Rating Dynamic Rating C | Basic Load Rating Static Rating Co (R) | Allowable Static Moment MA (θ) | Allowable Static Moment MB (N) | Allowable Static Moment MC (N) | Block Mounting Hole Pitch (Width Direction) | Block Mounting Hole Pitch (Length Direction) | Block Mounting Hole Diameter | Rail Mounting Hole Pitch | Rail Mounting Hole Diameter | Block External Dimension W (mm) | Block External Dimension L (mm) | Mounting hole for blocks | Number of Block Mounting Holes (holes) | Mounting Hole Dimension H (ø) | Mounting Hole Screw Depth (mm) | Block Dimension L1 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 7 Day(s) or more | Wide Short | - | 30 | Stainless Steel | 29500 | 34400 | 173 | 108 | 376 | 72 | - | 9 | 80 | 7 | 90 | 67.9 | Drilled Hole | 2 | 9 | Through | 40.4 | ||
- | 1 Piece(s) | 7 Day(s) or more | Wide | - | 30 | Stainless Steel | 45600 | 64400 | 564 | 346 | 703 | 72 | 40 | 9 | 80 | 7 | 90 | 96.8 | Drilled Hole | 4 | 9 | Through | 69.3 | ||
- | 1 Piece(s) | 7 Day(s) or more | Standard | - | 30 | Stainless Steel | 29500 | 34400 | 173 | 108 | 376 | 40 | - | 8 | 80 | 7 | 60 | 67.9 | Tapped hole | 2 | - | 12 | 40.4 | ||
- | 1 Piece(s) | 7 Day(s) or more | Standard | - | 30 | Stainless Steel | 45600 | 64400 | 564 | 346 | 703 | 40 | 40 | 8 | 80 | 7 | 60 | 96.8 | Tapped hole | 4 | - | 12 | 69.3 | ||
- | 1 Piece(s) | 7 Day(s) or more | Wide Short | - | 35 | Stainless Steel | 40900 | 46700 | 275 | 171 | 615 | 82 | - | 9 | 80 | 9 | 100 | 77.6 | Drilled Hole | 2 | 9 | Through | 45.7 | ||
- | 1 Piece(s) | 7 Day(s) or more | Wide | - | 35 | Stainless Steel | 60400 | 81800 | 785 | 482 | 1080 | 82 | 50 | 9 | 80 | 9 | 100 | 111 | Drilled Hole | 4 | 9 | Through | 79 | ||
- | 1 Piece(s) | 7 Day(s) or more | Standard | - | 35 | Stainless Steel | 40900 | 46700 | 275 | 171 | 615 | 50 | - | 8 | 80 | 9 | 70 | 77.6 | Tapped hole | 2 | - | 12 | 45.7 | ||
- | 1 Piece(s) | 7 Day(s) or more | Standard | - | 35 | Stainless Steel | 60400 | 81800 | 785 | 482 | 1080 | 50 | 50 | 8 | 80 | 9 | 70 | 111 | Tapped hole | 4 | - | 12 | 79 |
| Part Number |
|---|
Loading...
Basic Information
| Rail Type | Standard | Set / Single Item | Set | Ball Arrangement | 4 Rows of Circular |
|---|---|---|---|---|---|
| Retainer | No | Rolling Element | Ball |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
