Product Detail
Super Heavy Class 300X-PA Bolt Type Ultra Heavy Duty PA Polyurethane Wheel (Packing Caster)
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
Configured Specifications
| Caster Type | Screw-In Type / Dual Wheels | Wheel mounting height H(mm) | 135 |
|---|---|---|---|
| Load Range(daN) | 485.01~750.00 | Stopper (Detail) | No |
| Allowable Load(daN) | 588 | Wheel Material | Polyurethane (Adiprene R) |
| Wheel Characteristics | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Heat resistant | Body Material | [Aluminum] Aluminum Alloy Die Cast (ADC12) |
| Screw Diameter d (Main Mounting Shaft Diameter) | M24_P3 | Wheel Dia. D(Ø) | 100 |
| Wheel width W(mm) | 54 | Turning Radius r(mm) | 122 |
| Show More | |||
| Load Category | [Ultra Heavy Load] Ultra Heavy Load | Roller Bearing | Available |
| Show Less | |||
Japanese Only
-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
Similar Products
-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
Product Detail
-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
Configured Specifications
| Caster Type | Screw-In Type / Dual Wheels | Wheel mounting height H(mm) | 135 |
|---|---|---|---|
| Load Range(daN) | 485.01~750.00 | Stopper (Detail) | No |
| Allowable Load(daN) | 588 | Wheel Material | Polyurethane (Adiprene R) |
| Wheel Characteristics | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Heat resistant | Body Material | [Aluminum] Aluminum Alloy Die Cast (ADC12) |
| Screw Diameter d (Main Mounting Shaft Diameter) | M24_P3 | Wheel Dia. D(Ø) | 100 |
| Wheel width W(mm) | 54 | Turning Radius r(mm) | 122 |
| Show More | |||
| Load Category | [Ultra Heavy Load] Ultra Heavy Load | Roller Bearing | Available |
| Show Less | |||
-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
Configured Specifications
| Caster Type | Screw-In Type / Dual Wheels | Wheel mounting height H(mm) | 135 |
|---|---|---|---|
| Load Range(daN) | 485.01~750.00 | Stopper (Detail) | No |
| Allowable Load(daN) | 588 | Wheel Material | Polyurethane (Adiprene R) |
| Wheel Characteristics | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Heat resistant | Body Material | [Aluminum] Aluminum Alloy Die Cast (ADC12) |
| Screw Diameter d (Main Mounting Shaft Diameter) | M24_P3 | Wheel Dia. D(Ø) | 100 |
| Wheel width W(mm) | 54 | Turning Radius r(mm) | 122 |
| Show More | |||
| Load Category | [Ultra Heavy Load] Ultra Heavy Load | Roller Bearing | Available |
| Show Less | |||
Product Description
Starting resistance is reduced to the limit, durability is superb, and its incredible abrasion-resistant performance is superior to metal. A caster for super heavy weight items.
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
Configured Specifications
| Caster Type | Screw-In Type / Dual Wheels | Wheel mounting height H(mm) | 135 |
|---|---|---|---|
| Load Range(daN) | 485.01~750.00 | Stopper (Detail) | No |
| Allowable Load(daN) | 588 | Wheel Material | Polyurethane (Adiprene R) |
| Wheel Characteristics | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Heat resistant | Body Material | [Aluminum] Aluminum Alloy Die Cast (ADC12) |
| Screw Diameter d (Main Mounting Shaft Diameter) | M24_P3 | Wheel Dia. D(Ø) | 100 |
| Wheel width W(mm) | 54 | Turning Radius r(mm) | 122 |
| Show More | |||
| Load Category | [Ultra Heavy Load] Ultra Heavy Load | Roller Bearing | Available |
| Show Less | |||
Japanese Only
-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
Similar Products
-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
Product Detail
-
- Order Qty. :
-
-
- Price :
- ₹ 30,775.60/Piece
This is standard price, please register to see the actual price
-
- Total Price :
- ₹ 30,775.60
-
- Days to ship :
- 22 Day(s)
Configured Specifications
| Caster Type | Screw-In Type / Dual Wheels | Wheel mounting height H(mm) | 135 |
|---|---|---|---|
| Load Range(daN) | 485.01~750.00 | Stopper (Detail) | No |
| Allowable Load(daN) | 588 | Wheel Material | Polyurethane (Adiprene R) |
| Wheel Characteristics | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Heat resistant | Body Material | [Aluminum] Aluminum Alloy Die Cast (ADC12) |
| Screw Diameter d (Main Mounting Shaft Diameter) | M24_P3 | Wheel Dia. D(Ø) | 100 |
| Wheel width W(mm) | 54 | Turning Radius r(mm) | 122 |
| Show More | |||
| Load Category | [Ultra Heavy Load] Ultra Heavy Load | Roller Bearing | Available |
| Show Less | |||
| Part Number |
|---|
| 307X-PA |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship |
|---|---|---|---|---|
₹ 30,775.60 | 1 Piece(s) | 22 Day(s) or more |
| Part Number |
|---|
Basic Information
| Caster Type | Screw-In Type / Dual Wheels | Wheel mounting height H(mm) | 135 | Load Range(daN) | 485.01~750.00 |
|---|---|---|---|---|---|
| Stopper (Detail) | No | Allowable Load(daN) | 588 | Wheel Material | Polyurethane (Adiprene R) |
| Wheel Characteristics | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Heat resistant | Body Material | Aluminum Alloy Die Cast (ADC12) | Screw Diameter d (Main Mounting Shaft Diameter) | M24_P3 |
| Wheel Dia. D(Ø) | 100 | Wheel width W(mm) | 54 | Turning Radius r(mm) | 122 |
| Load Category | Ultra Heavy Load | Roller Bearing | Available |

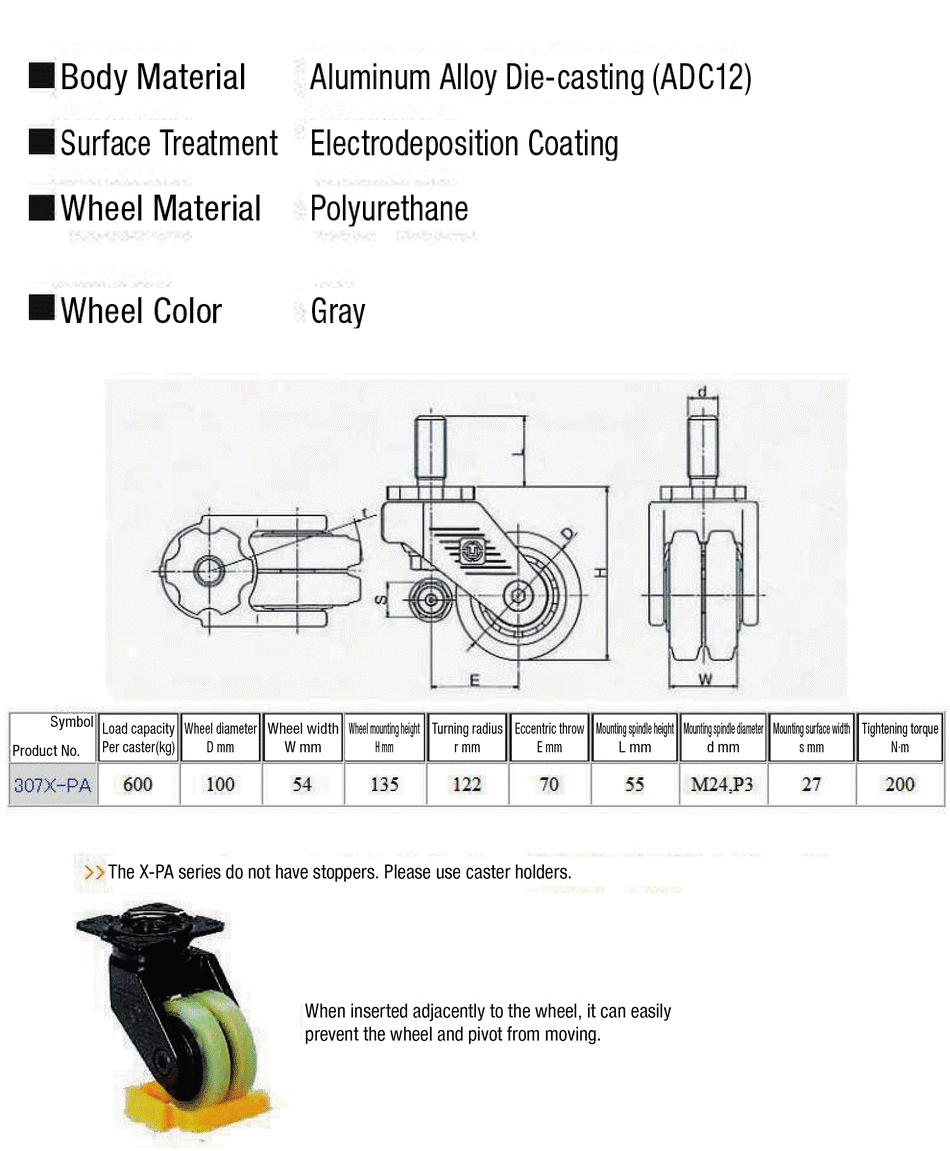

Please check the type/dimensions/specifications of the part 307X-PA in the Super Heavy Class 300X-PA Bolt Type Ultra Heavy Duty PA Polyurethane Wheel (Packing Caster) series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
