Post-Assembly Leaf Spring Nuts For Aluminum Frames【1-100 Pieces Per Package】
Move the mouse over or click the image to zoom
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Starting From :
- 14₹/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Similar Products
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Product Detail
Product Description
New at MISUMI? Get 20% Discount on your First Purchase. Click to Register Now
Insertion Nuts With Leaf Spring For Aluminum Frames
It is a square nut, which has a leaf spring for preventing the nut slipping off when inserted into the vertical direction
[Features]
• Post-Assembly: Mountable from slots after assembly
• Suitable for use with aluminum Frames 2020 series (slot width 6 mm.)
• Can support bolt size M4, M5 and M6
• Size (Width x Length x Depth): 8.2 x 13 x 5 mm.
• Material :
T-nut: Steel
Leaf Spring: SUS304
[Applications]
Suitable for use with bolt and aluminum Frames 2020 series (slot width 6 mm.)., for assembling machine components
Nuts, As special accessories for Economy Series aluminum profiles, they can only be used with Economy Series aluminum profiles, but cannot be used with the existing Japanese standard (JIS) profiles and other Chinese national standard profilesof MISUMI. When purchasing the accessories, select after confirming their dimensions according to specifications of the profiles.Example of difference in slot type between profiles of various specifications and applicable schematic diagrams
Material Body：Steel Leaf Spring：SUS304
Surface TreatmentBody：Zinc Plating
 M | Reference tightening torque（N·m） |
| 4 | 4.1 |
| 5 | 6.6 |
| 6 | 11 |
| 8 | 25.8 |
■Specification Table
| Part Number | Nomial of Thread M |  QTY per Package | A | B | C | E | T | Reference tightening torque (N·m) | |
| Type |  Frame series | ||||||||

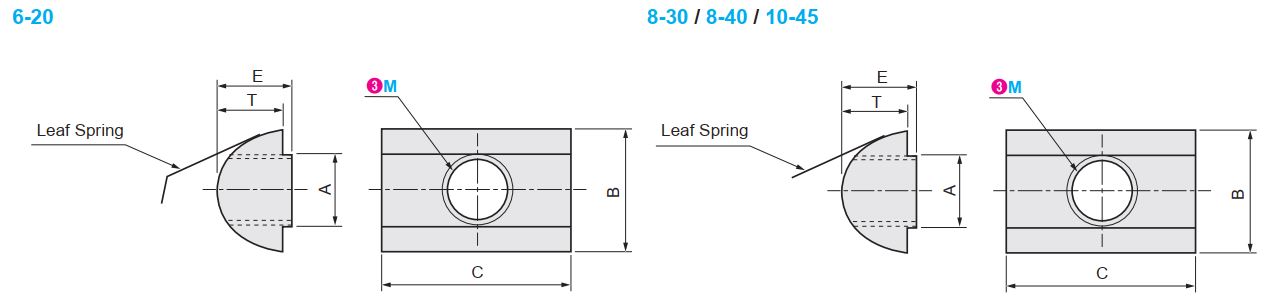

| LNTRNM | 6－20 | 4 | 100P (100pcs/pack) | 5.8 | 8.5 | 14 | 4.2 | 3.2 | 4.1 |
| 5 | 6.6 | ||||||||
| 6 | 11 | ||||||||
| 8－30 | 4 | 8 | 12.5 | 20 | 6.8 | 6 | 4.1 | ||
| 5 | 6.6 | ||||||||
| 6 | 11 | ||||||||
| 8 | 25.8 | ||||||||
| 8－40 | 4 | 14 | 7.8 | 6.8 | 4.1 | ||||
| 5 | 6.6 | ||||||||
| 6 | 11 | ||||||||
| 8 | 25.8 | ||||||||
| 10－45 | 4 | 10 | 15 | 7.5 | 6.3 | 4.1 | |||
| 5 | 6.6 | ||||||||
| 6 | 11 | ||||||||
| 8 | 25.8 | ||||||||
2. Fully automatic equipment to process threads, ensuring accuracy and stable quality;
3. Define safe tightening torque to make assembly more convenient.
| Recommended product 1 | Recommended product 2 | Recommended product 3 |
| 20 series 2020 aluminum frames slot width 6mm | Flat head bolt for aluminum frames (50 pcs included) | Light load die-cast bracket for aluminum frames with slot width of 6mm |
 |  |  |
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number |
|---|
| LNTRNM6-20-4 |
| LNTRNM6-20-4-100P |
| LNTRNM6-20-5 |
| LNTRNM6-20-5-100P |
| LNTRNM6-20-6 |
| LNTRNM6-20-6-100P |
| Part Number | Price | Minimum Order Qty. | Number of pc(s). included in pkg. | Volume Discount | Days to Ship | Nominal of Thread M (mm) | Sale Type | Aluminum Frame Profile |
|---|---|---|---|---|---|---|---|---|
₹ 14.00 | 1 Piece(s) | Same day | M4 | - | - | |||
₹ 1,335.00 | 1 Pack(s) | 100 Pieces Per Package | Available | Same day | M4 | Bag Sales | 2020 | |
₹ 15.00 | 1 Piece(s) | Same day | M5 | Bulk Sales | - | |||
₹ 2,400.00 | 1 Pack(s) | 100 Pieces Per Package | Available | Same day | M5 | Bag Sales | 2020 | |
₹ 15.00 | 1 Piece(s) | Same day | M6 | - | - | |||
₹ 1,264.00 | 1 Pack(s) | 100 Pieces Per Package | Available | Same day | M6 | Bag Sales | 2020 |
| Part Number |
|---|
Loading...
Basic Information
| Nut Type | Post-Assembly Insertion Nuts | Series | MISUMI European Standard Groove Width 6 mm for Aluminum Only | Function | Economy |
|---|---|---|---|---|---|
| Material | Steel | Lock | Not Provided | Surface Treatment | Nickel Plating |
| Type | Shrapnel Nut |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Frequently asked question (FAQ)
- Question: What do the numbers after the model mean?
-
Answer:
The numbers are consistent with the series of aluminum alloy profiles, and most of them can be used as long as they correspond.
Example: LNTRNM6-20-5-100P corresponding to the applicable profile specifications: LCF6-2020-100 - Question: What does 100P after the model stand for?
-
Answer:
100P after the model means 100PCS, that is sales of 100 pcs/pack.
Example: LNTRNM6-20-5-100P means actual shipment is in 100 pcs/pack.
