Product Detail
Specification/Dimensions
-
type
- LHBBLN
- LHBBN
- LHBBWN
-
Inscribed Circle Dia. dr(Ø)
-
Overall Length L(mm)
-
Outer Dia. D(Ø)
-
Ball Recirculating Type
- Single
- Double
-
Length
- Single
- Double
- Long
-
Greased Filled
- G Type (Low Dust Generation)
- H Type (For Food, Drinking Water)
- L Type (Heat Resistant)
- Not Provided
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- Same day
- 6 Day(s) or Less
- 10 Day(s) or Less
- 11 Day(s) or Less
Specify Alterations

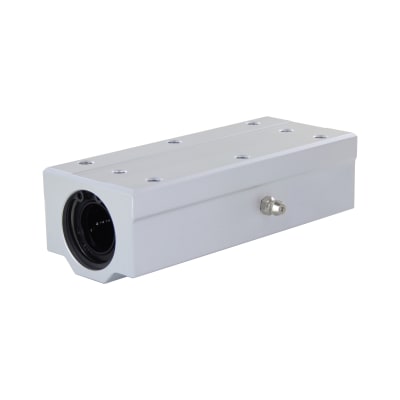

Linear Bushing Housing Units with Dowel Holes - Wide Blocks - Single / Double (LHBBWN20H)
Click this image to zoom it.
- Volume Discount
You can add up to 6 items per a category to the compare list.
Part Number :
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Loading...
Configured Specifications
| Type | Housing | Inscribed Circle Dia. dr(Ø) | 20 |
|---|---|---|---|
| Overall Length L(mm) | 96 | Style | Standard |
| Outer Sleeve Material | [Steel] SUJ2 Equivalent | Outer Sleeve Surface Treatment | [Surface Treatment] Clear Anodize |
| Outer Dia. D(Ø) | 32 | Lubrication Type | Not Provided |
| Accuracy | High Grade | Ball Recirculating Type | Double |
| Motion | Linear | Types | Linear Bushing Housing Unit - Wide Blocks |
| Show More | |||
| Length | Double | Basic Load Rating: Dynamic Load (Details)(N) | 1400 |
| Basic Load Rating: Static Load(N) | 2740 | Inscribed Circle Dia. Tolerance (Negative Side)(mm) | -0.012 |
| Ball Material | SUJ2 Equivalent | Retainer Material | Plastic (Duracon M90 Equivalent) |
| Seal | With Seal | Outer Cylinder Material | SUJ2 Equivalent |
| Greased Filled | H Type (For Food, Drinking Water) | RoHS | 10 |
| Show Less | |||
Similar Products
Product Detail-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Loading...
Configured Specifications
| Type | Housing | Inscribed Circle Dia. dr(Ø) | 20 |
|---|---|---|---|
| Overall Length L(mm) | 96 | Style | Standard |
| Outer Sleeve Material | [Steel] SUJ2 Equivalent | Outer Sleeve Surface Treatment | [Surface Treatment] Clear Anodize |
| Outer Dia. D(Ø) | 32 | Lubrication Type | Not Provided |
| Accuracy | High Grade | Ball Recirculating Type | Double |
| Motion | Linear | Types | Linear Bushing Housing Unit - Wide Blocks |
| Show More | |||
| Length | Double | Basic Load Rating: Dynamic Load (Details)(N) | 1400 |
| Basic Load Rating: Static Load(N) | 2740 | Inscribed Circle Dia. Tolerance (Negative Side)(mm) | -0.012 |
| Ball Material | SUJ2 Equivalent | Retainer Material | Plastic (Duracon M90 Equivalent) |
| Seal | With Seal | Outer Cylinder Material | SUJ2 Equivalent |
| Greased Filled | H Type (For Food, Drinking Water) | RoHS | 10 |
| Show Less | |||
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Loading...
Configured Specifications
| Type | Housing | Inscribed Circle Dia. dr(Ø) | 20 |
|---|---|---|---|
| Overall Length L(mm) | 96 | Style | Standard |
| Outer Sleeve Material | [Steel] SUJ2 Equivalent | Outer Sleeve Surface Treatment | [Surface Treatment] Clear Anodize |
| Outer Dia. D(Ø) | 32 | Lubrication Type | Not Provided |
| Accuracy | High Grade | Ball Recirculating Type | Double |
| Motion | Linear | Types | Linear Bushing Housing Unit - Wide Blocks |
| Show More | |||
| Length | Double | Basic Load Rating: Dynamic Load (Details)(N) | 1400 |
| Basic Load Rating: Static Load(N) | 2740 | Inscribed Circle Dia. Tolerance (Negative Side)(mm) | -0.012 |
| Ball Material | SUJ2 Equivalent | Retainer Material | Plastic (Duracon M90 Equivalent) |
| Seal | With Seal | Outer Cylinder Material | SUJ2 Equivalent |
| Greased Filled | H Type (For Food, Drinking Water) | RoHS | 10 |
| Show Less | |||
Product Description
New at MISUMI? Get 20% Discount on your First Purchase. Click to Register Now
MISUMI original standard. Compared to the standard type, the dowel hole type reduces equipment assembly time and improves position repeatability.
Click this image to zoom it.
- Volume Discount
You can add up to 6 items per a category to the compare list.
Part Number :
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Loading...
Configured Specifications
| Type | Housing | Inscribed Circle Dia. dr(Ø) | 20 |
|---|---|---|---|
| Overall Length L(mm) | 96 | Style | Standard |
| Outer Sleeve Material | [Steel] SUJ2 Equivalent | Outer Sleeve Surface Treatment | [Surface Treatment] Clear Anodize |
| Outer Dia. D(Ø) | 32 | Lubrication Type | Not Provided |
| Accuracy | High Grade | Ball Recirculating Type | Double |
| Motion | Linear | Types | Linear Bushing Housing Unit - Wide Blocks |
| Show More | |||
| Length | Double | Basic Load Rating: Dynamic Load (Details)(N) | 1400 |
| Basic Load Rating: Static Load(N) | 2740 | Inscribed Circle Dia. Tolerance (Negative Side)(mm) | -0.012 |
| Ball Material | SUJ2 Equivalent | Retainer Material | Plastic (Duracon M90 Equivalent) |
| Seal | With Seal | Outer Cylinder Material | SUJ2 Equivalent |
| Greased Filled | H Type (For Food, Drinking Water) | RoHS | 10 |
| Show Less | |||
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Loading...
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Loading...
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Loading...
Configured Specifications
| Type | Housing | Inscribed Circle Dia. dr(Ø) | 20 |
|---|---|---|---|
| Overall Length L(mm) | 96 | Style | Standard |
| Outer Sleeve Material | [Steel] SUJ2 Equivalent | Outer Sleeve Surface Treatment | [Surface Treatment] Clear Anodize |
| Outer Dia. D(Ø) | 32 | Lubrication Type | Not Provided |
| Accuracy | High Grade | Ball Recirculating Type | Double |
| Motion | Linear | Types | Linear Bushing Housing Unit - Wide Blocks |
| Show More | |||
| Length | Double | Basic Load Rating: Dynamic Load (Details)(N) | 1400 |
| Basic Load Rating: Static Load(N) | 2740 | Inscribed Circle Dia. Tolerance (Negative Side)(mm) | -0.012 |
| Ball Material | SUJ2 Equivalent | Retainer Material | Plastic (Duracon M90 Equivalent) |
| Seal | With Seal | Outer Cylinder Material | SUJ2 Equivalent |
| Greased Filled | H Type (For Food, Drinking Water) | RoHS | 10 |
| Show Less | |||
| Type | Linear Bushings | Housing | Ambient Operating Temp. | |||
| Single | Double | Long | [ M ] Material | [ S ] Surface Treatment | ||
| LHBBN | LHBBWN | LHBBLN | LMU | Aluminum Alloy | Clear Anodizing | -20~80°C |
Single Type
Double Type
Long
| Type | Linear Bushing Used | Housing | Operating Ambient Temperature | |||
| Single Type | Double Type | Long | [M] Material | [S] Surface Treatment | ||
| LHBBN | LHBBWN | LHBBLN | LMU | Aluminum Alloy | Clear Anodize | －20 to 80°C |
Specification Table
| Part Number | |
| LHBBN10 LHBBWN20  LHBBWN20L LHBBWN20G LHBBWN20H | (L Type Greased) (G Type Greased) (H Type Greased) |
| dr | Tolerance | L | L1 | h | H | (H1) | (H2) | W | W1 | W2 | M | d | ℓ | (A) | (B) | N | J | C | ||||||
| Single | Double | Long | Single | Double | Long | Single | Double | Long | ||||||||||||||||
| 10 | 0 | 0 | — | 35 | 68 | — | 21 | 46 | — | 13 | 26 | 21 | 8 | 40 | 28 | 6 | M5 | 4.3 | 12 | 15.5 | 0.4 | 7.5 | — | 5 |
| 12 | － 0.009 | － 0.010 | 36 | 70 | — | 26 | 50 | — | 15 | 28 | 24 | 42 | 30.5 | 5.75 | 17.5 | 7 | — | 4 | ||||||
| 13 | 39 | 75 | — | — | 30 | 24.5 | 44 | 33 | 5.5 | 19 | 0.85 | — | 5.5 | |||||||||||
| 16 | 0 - 0.015 | 44 | 85 | 118 | 34 | 60 | 88 | 19 | 38.5 | 32.5 | 9 | 50 | 36 | 7 | 19.8 | 6.5 | 7 | 6 | ||||||
| 20 | 0 | 0 | 0 | 50 | 96 | 134 | 40 | 70 | 100 | 21 | 41 | 35 | 11 | 54 | 40 | M6 | 5.2 | 21 | 0.5 | 7.5 | 8 | 6 | ||
| 25 | － 0.010 | － 0.012 | － 0.018 | 67 | 130 | 185 | 50 | 100 | 138 | 26 | 51.5 | 42 | 12 | 76 | 54 | 11 | M8 | 7 | 18 | 36 | 1 | 4.5 | 9 | 9.5 |
| 30 | 72 | 140 | 200 | 58 | 110 | 150 | 30 | 59.5 | 49 | 15 | 78 | 58 | 10 | 39.9 | 0.75 | 5.5 | 10.5 | |||||||
| 35 | 0 | 0 | 0 | 80 | 155 | 220 | 60 | 120 | 170 | 34 | 68 | 54 | 18 | 90 | 70 | 53 | 1.5 | 6 | 10 | 14 | ||||
| 40 | － 0.012 | － 0.015 | － 0.021 | 90 | 175 | 250 | 60 | 140 | 190 | 40 | 78 | 62 | 20 | 102 | 80 | 11 | M10 | 8.7 | 25 | 61 | 5.5 | 12 | 16 | |
| 50 | 110 | 215 | 310 | 80 | 160 | 230 | 52 | 102 | 80 | 25 | 122 | 100 | 81 | 22 | ||||||||||
[!] The datum surface is located on the other side of Part Number label.
[ ! ] Position of dowel holes for Long Type is ±0.02 from the center of dr.
| dr | Dowel Hole Dimensions | Basic Load Rating | Allowable Static Moment | Mass (g) | ||||||||||||
| P | ℓ2 | G | E | C (Dynamic) N | Co (Static) N | (N⋅m) | ||||||||||
| Single | Double | Long | Single | Double | Long | Single | Double | Long | Single | Double | Long | |||||
| 10 | 4 | 5 | 5 | — | 372 | 588 | — | 549 | 1100 | — | — | 7.24 | — | 92 | 180 | — |
| 12 | — | 412 | 657 | — | 598 | 1200 | — | — | 10.9 | — | 102 | 205 | — | |||
| 13 | — | 510 | 813 | — | 784 | 1570 | — | — | 11.6 | — | 120 | 240 | — | |||
| 16 | 88 | 775 | 1230 | 1230 | 1180 | 2350 | 2350 | — | 19.7 | 73.5 | 220 | 400 | 527 | |||
| 20 | 5 | (5) | 6 | 100 | 882 | 1400 | 1400 | 1370 | 2740 | 2740 | — | 26.8 | 98.0 | 255 | 570 | 682 |
| 25 | 6 | 138 | 980 | 1560 | 1560 | 1570 | 3140 | 3140 | — | 43.4 | 157 | 600 | 1200 | 1586 | ||
| 30 | 150 | 1570 | 2490 | 2490 | 2740 | 5490 | 5490 | — | 82.8 | 297 | 735 | 1480 | 1960 | |||
| 35 | 170 | 1670 | 2650 | 2650 | 3140 | 6270 | 6270 | — | 110 | 373 | 1100 | 2200 | 2974 | |||
| 40 | 6 | 7 | 7 | 190 | 2160 | 3430 | 3430 | 4020 | 8040 | 8040 | — | 147 | 553 | 1590 | 3200 | 4285 |
| 50 | 230 | 3820 | 6080 | 6080 | 7940 | 15900 | 15900 | — | 397 | — | 3340 | 6700 | 8620 | |||
Part Number
Loading...
| Part Number |
|---|
| LHBBWN20H |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS | Inscribed Circle Dia. dr (Ø) | Overall Length L (mm) | Outer Dia. D (Ø) | Ball Recirculating Type | Length | Basic Load Rating: Dynamic Load (Details) (N) | Basic Load Rating: Static Load (N) | Inscribed Circle Dia. Tolerance (Negative Side) (mm) | Greased Filled |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
₹ 5,197.63 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | 20 | 96 | 32 | Double | Double | 1400 | 2740 | -0.012 | H Type (For Food, Drinking Water) |
| Part Number |
|---|
Specifications/Overview
Installation Example
■Features of Dowel Hole Type
·By the dowel holes provided on the mounting interface surface, locating workpieces using the side datum can be eliminated. (See Installation Example above)
·Machining steps can be reduced for the top plate to be mounted on the block.
| Conventional Type | Dowel Hole Type | |
 |  | |
| Locating with plate end datum | Locating with dowel holes |
·By the dowel holes provided on the mounting interface surface, locating workpieces using the side datum can be eliminated. (See Installation Example above)
·Machining steps can be reduced for the top plate to be mounted on the block.
Basic Information
| Type | Housing | Style | Standard | Outer Sleeve Material | SUJ2 Equivalent |
|---|---|---|---|---|---|
| Outer Sleeve Surface Treatment | Clear Anodize | Lubrication Type | Not Provided | Accuracy | High Grade |
| Motion | Linear | Types | Linear Bushing Housing Unit - Wide Blocks | Ball Material | SUJ2 Equivalent |
| Retainer Material | Plastic (Duracon M90 Equivalent) | Seal | With Seal | Outer Cylinder Material | SUJ2 Equivalent |
Please check the type/dimensions/specifications of the part LHBBWN20H in the Linear Bushing Housing Units with Dowel Holes - Wide Blocks - Single / Double series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
