Product Description

New at MISUMI? Get 20% Discount on your First Purchase. Click to Register Now

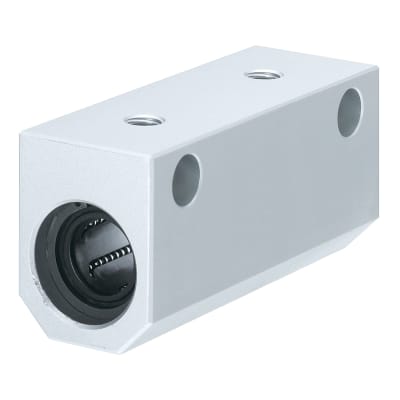

Tall Blocks Housing Units - Double / Compact
The linear bushing supports and guides a load, enabling smooth and accurate linear motion along a specified path. It provides a variety of sizes to choose from.
[Feature]
● Support Shaft Diameter Minimum/Maximum (mm.): 4 and 30
● Overall Length Minimum/Maximum (mm.): 27 and 138
● Shape : Tall Blocks Housing Standard and Compact Units
● Material:
- Housing - Aluminum Alloy
- Ball - SUJ2 Equivalent or SUS440C Equivalent
[Application]
It is used in industrial machinery such as conveyor systems, packaging machines, and robotic equipment.

Volume Discount

Brand :

MISUMI

Part Number :

LHSSKW6

LHSSKW6G

LHSSKW6H

LHSSKW6L

LHSSKW8

LHSSKW8G

LHSSKW8H

LHSSKW8L

LHSSKW10

LHSSKW10G

LHSSKW10H

LHSSKW10L

LHSSKW12

LHSSKW12G

LHSSKW12H

LHSSKW12L

LHSSKW16

LHSSKW16G

LHSSKW16H

LHSSKW16L

LHSSKW6

Order Qty :
Total Price :

---
Days to ship :

---

Select part number to Order Now/ Add to Cart

CAD Download

Standard

Compact

Type		Linear Bushing Used		Housing		Operating Ambient Temperature
Type				Housing
Standard	Compact	Standard	Compact	[M] Material	[S] Surface Treatment
LHSSW	LHSSKW	LMU	LMK	Aluminum Alloy	Clear Anodize	−20 to 80°C
LHSSWF	—	LMUF	—			−20 to 110°C
SLHSSW	—	SLMU	—			−20 to 80°C
SLHSSWF	—	SLMUS	—			−20 to 110°C

Specification Table

Part Number
LHSSW12 LHSSW12L LHSSW12G LHSSW12H	(L Type Greased) (G Type Greased) (H Type Greased)

[ ! ] Alternative grease types available.

dr	Tolerance	D		(S)	L	L₁	L₂	h		W		H		ℓ		M₁ (Effective Length)		M₂ (Effective Length)		C	C₁	d₁ × t
dr	Tolerance	Standard	Compact	(S)	L	L₁	L₂	Standard	Compact	Standard	Compact	Standard	Compact	Standard	Compact	Standard	Compact	Standard	Compact	C	C₁	d₁ × t
4	0 −0.008	8	—	1.1	27	14	22	10	—	12	—	16	—	3	—	M3 (6)	—	M3 (10.5)	—	—	0.5	4.2 × 1.5 (For M2 Screws)
5	0 −0.008	10	—	4.0	40	18	28	13	—	15	—	20	—	5	—	M4 (8)	—	M4 (10)	—	—	1	6 × 5 (For M3 Screws)
(6)	0 −0.010	12	10	3.0	46	20	30	14	13	16	14	22	20		4	M4 (8)	M4 (8)	M4 (11)	M4 (9)	4	1 or less
(8)		15	13	3.0	56	30	42	16	15	20	17	26	24		5	M5 (8.5)	M5 (8.5)	M4 (15)	M4 (12)	5	1 or less
(10)		19	17	4.0	68	36	50	19	18	26	23	32	30	6	6	M6 (9.5)	M6 (9.5)	M5 (20)	M5 (17)	6	1 or less	8 × 6 (For M4 Screws)
(12)		21	19		70	36	50	20	19	28	25	34	32	6	6	M6 (9.5)	M6 (9.5)	M5 (22)	M5 (19)	6	1 or less	8 × 6 (For M4 Screws)
13		23	—		74	42	55	25	—	30	—	43	—	7	—	M6 (13)	—	M6 (23)	—	—	1	9 × 7 (For M5 Screws)
(16)		28	26	3.8	84	52	65	27	26	36	33	49	43	7	7	M6 (13)	M6 (13)	M6 (29)	M6 (26)	8	1 or less	9 × 7 (For M5 Screws)
20	0 −0.012	32	—	3.8	94	58	70	31	—	42	—	54	—	8	—	M8 (15)	—	M8 (34)	—	—	1	11 × 8 (For M6 Screws)
25		40	—	3.2	128	80	100	37	—	52	—	65	—	9	—	M10 (17)	—	M10 (42)	—	—	1	14 × 10 (For M8 Screws)
30		45	—	3.2	138	90	110	40	—	58	—	71	—	9	—	M10 (17.5)	—	M10 (48)	—	—	1	14 × 10 (For M8 Screws)

[!] Only dr dimensions in () are available for Compact Type. [!] Make certain that the screws do not interfere with the bushing as M₁ are through holes.
[!] The datum surface is located on the other side of Part Number label. [!] Anti-rust oil is applied at the time of delivery.

dr	Basic Load Rating				Allowable Static Moment (N⋅m)		Mass (g)
	C (Dynamic) N		Co (Static) N		Allowable Static Moment (N⋅m)		Standard	Compact
	Standard	Compact	Standard	Compact	Standard	Compact	Standard	Compact
4	176	—	254	—	0.63	—	14	—
5	263	—	412	—	1.38	—	35	—
6	324	206	529	309	2.18	2.46	40	34
8	431	383	784	555	4.31	5.76	75	60
10	588	585	1100	867	7.24	10.99	150	126
12	657	608	1200	899	10.9	11.85	168	150
13	813	—	1570	—	11.6	—	248	—
16	1230	965	2350	1431	19.7	23.48	383	296
20	1400	—	2740	—	26.8	—	520
25	1560	—	3140	—	43.4	—	1120	—
30	2490	—	5490	—	82.8	—	1384	—

Grease coating
By selecting the grease below, change to the product with grease coating is available.

Type	Product Name	Main Features
A Type	Alvania Grease S2 (by Showa Shell Sekiyu)	General-purpose grease suitable for various grease lubrication locations.
Y Type	AFF (Made by THK Co., Ltd.)	Grease with less particles, stable rolling resistance, and excellent fretting resistance.
G Type	LG2 (Made by NSK Ltd.)	Grease with less particles, excellent wear and rust resistance.
L Type	ET-100K (Made by KYODO YUSHI Co., Ltd.)	Superior heat resistance and oxidation stability. Also high adhesion and cohesion with limited splash or leakage.
H Type	FGL (Lubriplate)	Suitable for lubrication of equipment used in food, beverage and pharmaceutical industries. (NSF H-1 Reg. No. 043534)

Grease Performance Table (Reference Value)

Item	Conditions	Unit	Measurement Method	A Type	Y Type	G Type	L Type	H Type
Thickener	—	—	—	Lithium Type	Lithium Type	Lithium Type	Aromatic Diurea	Aluminum Complex Soap
Base Oil	—	—	—	Mineral Oil	Fine Synthetic Oil	Mineral Oil + Synthetic Hydrocarbon Oil	Ether Synthetic Oil	USP White Oil
Base Oil Kinematic Viscosity	40°C	mm2/s	JIS K2220 23	131	100	32	—	105 (ASTMD-445)
Base Oil Kinematic Viscosity	100°C	mm2/s	JIS K2220 23	12.2	—	5.4	—	11.5 (ASTMD-445)
Worked Penetration	—	—	JIS K2220 7	283	315	199	280	310 (ASTMD-217)
Dropping Point	—	°C	JIS K2220 8	181	220	201	260 <	238 (ASTMD-217)
Evaporation Amount	99°C × 22 hr	wt%	JIS K2220 10	0.2	0.7	1.4	—	0.27 (ASTMD−972)
Oil Separation	100°C × 24 hr	wt%	JIS K2220 11	2.4	2.6	0.8	1.2	2.1 (ASTMD−1742)
Operating Temp.	In Air	°C	—	-25 to 120	-40 to 120	−20 to 70	−40 to 200	−12 to 177
