Linear Bushings with Lubrication Unit MX - Flanged Double with Pilot

Volume Discount

Brand :

Part Number :

LHICW-MX10

LHICW-MX12

LHICW-MX16

LHICW-MX20

LHICW-MX25

LHICW-MX30

LHICW-MX35

LHICW-MX40

LHICW-MX50

LHIRW-MX10

LHIRW-MX12

LHIRW-MX16

LHIRW-MX20

LHIRW-MX25

LHIRW-MX30

LHIRW-MX35

LHIRW-MX40

LHIRW-MX50

LHISW-MX10

LHISW-MX12

LHICW-MX10

Order Qty :
Total Price :

---
Days to ship :

---

Select part number to Order Now/ Add to Cart

CAD Download

(i)
Caution

Delivery times for some of our products may be delayed as national government authorities have imposed limit of capacity at our production sites.

Product Description

New at MISUMI? Get 20% Discount on your First Purchase. Click to Register Now

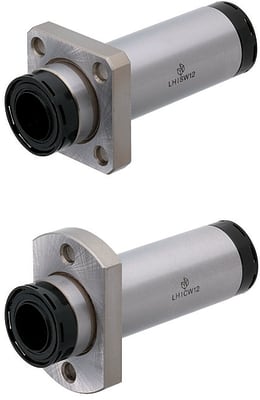

Linear Bushings with Lubrication Unit MX - Flanged Double with Pilot
The linear bushing supports and guides a load, enabling smooth and accurate linear motion along a specified path. It provides a variety of sizes to choose from.
[Feature]
● Support Shaft Diameter Minimum/Maximum (mm.): 10 and 50
● Overall Length Minimum/Maximum (mm.): 64.5 and 200
● Shape :Flanged With Pilot and Lubrication Unit
● Flange Shape : Round Flange, Square Flange, and Compact Flange
● Material:
- Outer Cylinder - SUJ2 Equivalent
- Ball - SUJ2 Equivalent
[Application]
It is used in industrial machinery such as conveyor systems, packaging machines, and robotic equipment.

Dimensional Drawing

Round Flange

Square flange

Compact Flange

dr = 10 to 12

dr = 16 to 50

■No need to fill with grease prior to use because the ball section is already filled with lithium soap-based grease in addition to the built-in lubrication unit.

Type			Outer Cylinder			Balls	Pad Case / Retainer	Operating Ambient Temperature	[A] Accessory
Round Flanged	Square Flanged	Compact Flanged	[M] Material	[H] Hardness	[S] Surface Treatment	[M] Material	[M] Material
LHIRW−MX	LHISW−MX	LHICW−MX	SUJ2 Equivalent	58HRC or more	—	SUJ2 Equivalent	Plastic (Duracon M90 Equivalent)	－20 to 80°C	Seal [M] Material Nitrile Rubber
LHIRWM−MX	LHISWM−MX	LHICWM−MX			Electroless Nickel Plating	SUS440C Equivalent

Specification Table

Part Number
LHIRW−MX16

[NG] Various Grease Application Services are not applicable

Part Number			D Tolerance			L	L₁		ℓ	H	T	d	d₁	t	P.C.D.	W	F	A	Eccentricity (Max.) * 1	Balls Rows	Perpendicularity * 2	Basic Load Rating		Allowable Static Moment (Mo N・m)	Mass (g)
Type	dr	Tolerance		No Surface Treatment	Surface Treatment	L		Tolerance	ℓ	H	T	d	d₁	t	P.C.D.	W	F	A	Eccentricity (Max.) * 1	Balls Rows	Perpendicularity * 2	C (Dynamic) N	Co (Static) N	Allowable Static Moment (Mo N・m)	Round Flange	Square flange	Compact Flange
LHIRW−MX LHISW−MX LHICW−MX LHIRWM−MX LHISWM−MX LHICWM−MX	10	0 － 0.010	19	0 － 0.016	0 － 0.021	64.5	55	±0.3	6	40	6	4.5	7.5	4.1	29	30	—	29	0.015	4	0.015	588	1100	7.24	102	82	94
	12		21			67.5	57			42					32	32	—	32				657	1200	10.9	114	94	106
	16		28			82	70			48					38	37	22	31				1230	2350	19.7	197	172	189
	20	0 － 0.012	32	0 － 0.019	0 － 0.025	93	80		8	54	8	5.5	9	5.1	43	42	24	36	0.020	5	0.020	1400	2740	26.8	271	236	258
	25		40			130	112		8	62	8	5.5	9	5.1	51	50	32	40		6		1560	3140	43.4	559	519	544
	30		45			142	123		10	74	10	6.6	11	6.1	60	58	35	49				2490	5490	82.8	704	614	669
	35	0 － 0.015	52	0 － 0.022	0 － 0.030	155.5	135		10	82	10	6.6	11	6.1	67	64	38	55	0.025		0.025	2650	6270	110	1048	958	973
	40		60			175	151		13	96	13	9	14	8.1	78	75	45	64				3430	8040	147	1603	1413	1456
	50		80			220	192		13	116	13	9	14	8.1	98	92	56	80				6080	15900	397	3663	3463	3500

kgf = N × 0.101972
* 1. The maximum amount of misalignment between the center point of the outer diameter D and the center point of the inner diameter dr.
* 2. Perpendicularity of D to flange mounting surface.

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.

: 30; 45; 60

Part Number
LHICW-MX10
LHICW-MX12
LHICW-MX16
LHICW-MX20
LHICW-MX25
LHICW-MX30
LHICW-MX35
LHICW-MX40
LHICW-MX50
LHIRW-MX10
LHIRW-MX12
LHIRW-MX16
LHIRW-MX20
LHIRW-MX25
LHIRW-MX30
LHIRW-MX35
LHIRW-MX40
LHIRW-MX50
LHISW-MX10
LHISW-MX12
LHISW-MX16
LHISW-MX20
LHISW-MX25
LHISW-MX30
LHISW-MX35
LHISW-MX40
LHISW-MX50

Price	Minimum Order Qty.	Volume Discount	Days to Ship	RoHS	Inscribed Circle Dia. dr (Ø)	Overall Length L (mm)	Outer Dia. D (Ø)	Eccentricity (µm)	Basic Load Rating: Dynamic Load (Details) (N)	Basic Load Rating: Static Load (N)	Inscribed Circle Dia. Tolerance (Negative Side) (mm)
₹ 1,883.20	1 Piece(s)	Available	6 Day(s) or more	10	10	64.5	19	15	588	1100	-0.01
₹ 1,996.19	1 Piece(s)	Available	6 Day(s) or more	10	12	67.3	21	15	657	1200	-0.01
₹ 2,495.24	1 Piece(s)	Available	6 Day(s) or more	10	16	82	28	15	1230	2350	-0.01
₹ 2,956.62	1 Piece(s)	Available	6 Day(s) or more	10	20	93	32	20	1400	2740	-0.012
₹ 4,180.70	1 Piece(s)	Available	6 Day(s) or more	10	25	130	40	20	1560	3140	-0.012
₹ 5,706.10	1 Piece(s)	Available	6 Day(s) or more	10	30	142	45	20	2490	5490	-0.012
₹ 10,301.10	1 Piece(s)	Available	6 Day(s) or more	10	35	155.5	52	25	2650	6270	-0.015
₹ 13,210.65	1 Piece(s)	Available	6 Day(s) or more	10	40	175	60	25	3430	8040	-0.015
₹ 17,683.25	1 Piece(s)	Available	6 Day(s) or more	10	50	220	80	25	6080	15900	-0.015
₹ 1,685.46	1 Piece(s)	Available	6 Day(s) or more	10	10	64.5	19	15	588	1100	-0.01
₹ 1,789.04	1 Piece(s)	Available	6 Day(s) or more	10	12	67.3	21	15	657	1200	-0.01
₹ 2,241.01	1 Piece(s)	Available	6 Day(s) or more	10	16	82	28	15	1230	2350	-0.01
₹ 2,702.39	1 Piece(s)	Available	6 Day(s) or more	10	20	93	32	20	1400	2740	-0.012
₹ 3,860.56	1 Piece(s)	Available	6 Day(s) or more	10	25	130	40	20	1560	3140	-0.012
₹ 5,301.21	1 Piece(s)	Available	6 Day(s) or more	10	30	142	45	20	2490	5490	-0.012
₹ 8,851.04	1 Piece(s)	Available	6 Day(s) or more	10	35	155.5	52	25	2650	6270	-0.015
₹ 11,336.86	1 Piece(s)	Available	6 Day(s) or more	10	40	175	60	25	3430	8040	-0.015
₹ 15,159.76	1 Piece(s)	Available	6 Day(s) or more	10	50	220	80	25	6080	15900	-0.015
₹ 1,949.11	1 Piece(s)	Available	6 Day(s) or more	10	10	64.5	19	15	588	1100	-0.01
₹ 2,090.35	1 Piece(s)	Available	6 Day(s) or more	10	12	67.3	21	15	657	1200	-0.01
₹ 2,627.06	1 Piece(s)	Available	6 Day(s) or more	10	16	82	28	15	1230	2350	-0.01
₹ 3,154.36	1 Piece(s)	Available	Same day	10	20	93	32	20	1400	2740	-0.012
₹ 4,510.26	1 Piece(s)	Available	6 Day(s) or more	10	25	130	40	20	1560	3140	-0.012
₹ 6,195.73	1 Piece(s)	Available	6 Day(s) or more	10	30	142	45	20	2490	5490	-0.012
₹ 10,442.34	1 Piece(s)	Available	6 Day(s) or more	10	35	155.5	52	25	2650	6270	-0.015
₹ 13,323.64	1 Piece(s)	Available	6 Day(s) or more	10	40	175	60	25	3430	8040	-0.015
₹ 17,880.98	1 Piece(s)	Available	6 Day(s) or more	10	50	220	80	25	6080	15900	-0.015

Part Number

Part Number	Price	Minimum Order Qty.	Volume Discount	Days to Ship	RoHS	Inscribed Circle Dia. dr (Ø)	Overall Length L (mm)	Outer Dia. D (Ø)	Eccentricity (µm)	Basic Load Rating: Dynamic Load (Details) (N)	Basic Load Rating: Static Load (N)	Inscribed Circle Dia. Tolerance (Negative Side) (mm)

Download (PDF)

Catalog (2 page view)

Product TOP

Basic Information

Type	Flange	Flange Type	Male-Female Joint Flanged	Style	Standard
Outer Sleeve Material	SUJ2 Equivalent	Outer Sleeve Surface Treatment	No Surface Treatment	Lubrication Type	With Lubrication Unit MX
Accuracy	High Grade	Ball Recirculating Type	Double	Motion	Linear
Ball Material	SUJ2 Equivalent	Retainer Material	Plastic (Duracon M90 Equivalent)	Seal	With Seal
Counterbored Hole	Standard	Greased Filled	Lithium Soap Based
